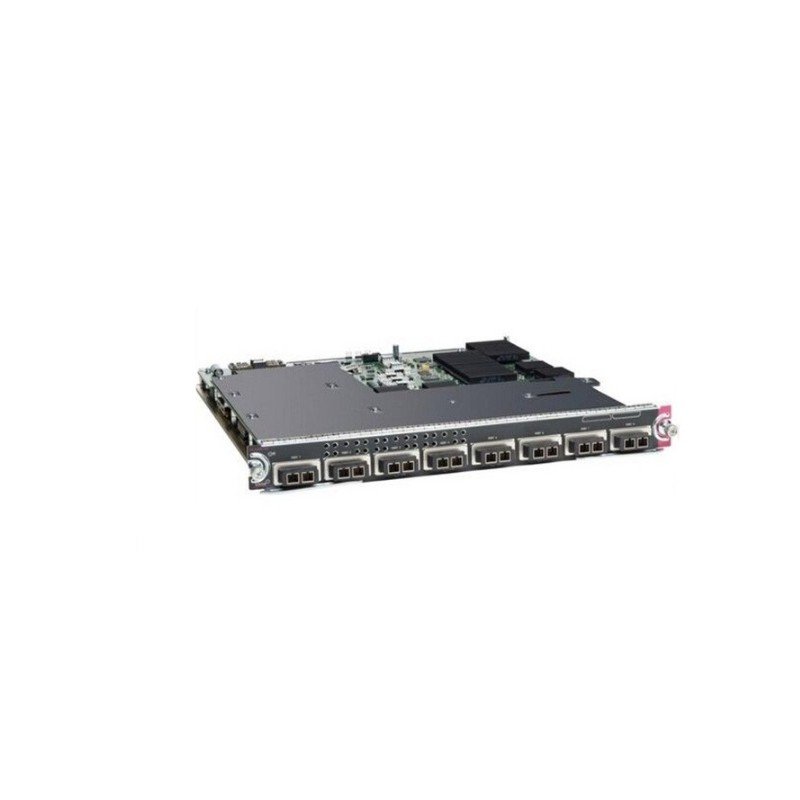

| Model: | WS-X6908-10G-2TXL Cisco Catalyst 6500 Series Ethernet Module |
| Detail: | Cisco 6500 Module WS-X6908-10G-2TXL C6K 8 port 10 Gigabit Ethernet module with DFC4XL (Trustsec) |
Original price was: $57,500.00.$26,000.00Current price is: $26,000.00.
WS-X6908-10G-2TXL Specification |
|
|
Standard protocols |
IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, and IEEE 802.3an |
|
Physical specifications |
● Occupies one slot in the Cisco Catalyst 6500 E-Series chassis ● Dimensions (H x W x D): 1.73 x 14.4 x 16 in. (4.4 x 36.6 x 40.6 cm) ● Weight: 12.6 pounds excluding X2 components; ¼ pound for each X2 |
|
Environmental conditions |
Operating temperature: ● Agency-certified for operation: 32 to 104°F (0 to 40°C) ● Design and tested for operation 32 to 130°F (0 to 55°C) ● Storage temperature: -40 to 167°F (-40 to 75°C) ● Relative humidity: 10 to 90 percent, noncondensing Operating altitude: ● Agency-certified for operation: -500 to 6500 ft (-150 to 2000m) ● Designed and tested for operation -500 to 10000 ft (-150 to 3000m) |
|
Regulatory compliance |
Cisco Catalyst 6500 Series 10 Gigabit Ethernet Fiber modules, when installed in a system, comply with the following EMC and safety standards: EMC Standards: ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● VCCI Class A ● EN55022 Class A ● EN55024 ● CISPR24 ● CISPR 22 Class A ● AS/NZS CISPR 22 Class A ● ETS 300 386 ● KN 22 Class A ● EN61000-3-2 ● EN61000-3-3 ● CNS13438 Class A Safety Standards: ● UL 60950-1 ● CAN/CSA C22.2 No. 60950 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950-1 |
|
NEBS criteria levels |
SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)[2] |
|
ETSI |
● ETS 300 019-2-1, Class 1.2 Storage ● ETS 300 019-2-2, 2.3 Transportation ● ETS 300 019-2-3, Class 3.2 Stationary Use |
|
Network management |
● ETHERLIKE-MIB (RFC 1643) ● IP-MIB and IP-FORWARD-MIB for IPv6 ● IF-MIB (RFC 1573) ● Bridge MIB (RFC 1493) ● CISCO-STACK-MIB ● CISCO-VTP-MIB ● CISCO-CDP-MIB ● RMON MIB (RFC 1757) ● CISCO-PAGP-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-VLAN-BRIDGE-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● ENTITY-MIB (RFC 2037) ● HC-RMON ● RFC1213-MIB (MIB-II) ● SMON-MIB |
|
Power requirements |
● WS-X6908-10G-2TXL: 603 Watts Maximum ● At the time of the writing of this datasheet, the final power numbers are not known. Please consult the 12.2(50)SY Release Notes for these numbers if they are not provided here. |
|
Indicators |
● Status: green (operational), red (faulty), and orange (module booting) ● Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected) ● Blue Beacon: Used to ID a specific module in a fully populated system, within a multi-system environment |
