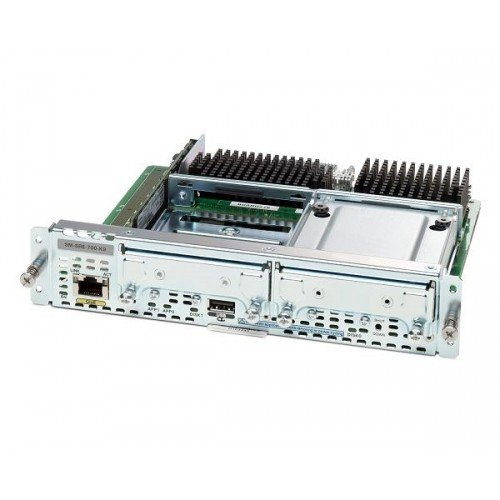

| Model: | SM-SRE-700-K9 Router Services Ready Engine |
| Detail: | Cisco Service-Ready Mondule (SRE), Voicemail, wilreless controller, AXP, Intel Processor, Software controller, 500G hard disk, 4G memory |
Original price was: $2,300.00.$1,219.00Current price is: $1,219.00.
SM-SRE-700-K9 Specifications |
|
|
Form factor |
SM |
|
CPU |
Intel Core2 Solo, 1.86 GHz |
|
DRAM |
4 GB |
|
Compact Flash memory |
2-GB internal USB flash-memory module |
|
Hard disk |
One 500-GB SATA 5400 rpm (SRE 700) |
|
Hot-swappable hard disk drive (HDD) |
None |
|
RAID support |
None |
|
Internal network interfaces |
Gigabit Ethernet connectivity to router backplane |
|
External network interfaces |
One USB connector One RJ-45 Gigabit Ethernet connector |
|
Router platforms |
Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers |
|
Cisco IOS Software (on router) |
Release 15.1(4)M |
|
Embedded hardware-based cryptography acceleration |
No |
|
Applications |
• Cisco Unity Express • Cisco UCS Express • Cisco AXP • Cisco WLC • Cisco Wide Area Application Services (WAAS) • Infoblox Core Network Services • Cisco Prime Network Analysis Module (NAM) • Cisco Unified SIP Proxy • Cisco Unified Messaging Gateway (UMG) • Cisco Survivable Remote Site Voicemail (SRSV) • Sagemcom Fax over IP • Tiani Spirit Medical Data Exchange Solution • Orion Health Rhapsody Connect • NetScout nGenius Integrated Agent • BlueCat Adonis DNS/DHCP and Proteus IPAM • LogLogic MX-Virtual Appliance • SecureLogix Voice Policy Firewall • Open Text RightFax Fax over IP • Visual Network Systems OmniPoint Element • Uplogix Local Management Platform • IndustryWeapon CommandCenterHD |
|
Power consumption (maximum) |
35W |
|
Dimensions (H x W x D) |
1.58 x 7.44 x 7.5 in. (4 x 18.9 x 19.1 cm) |
|
Shipping dimensions (H x W x D with packaging) |
9.5 x 7.5 x 2.5 in. (24.1 x 19.1 x 6.4 cm) |
|
Maximum weight |
2.5 lb (1.1 kg) |
|
Operating temperature |
32 to 104°F (0 to 40°C) normal 23 to 131°F (-5 to +55°C) short term |
|
Humidity |
10 to 85% operating |
|
Altitude (operating) |
104°F (40°C) at sea level 104°F (40°C) at 6,000 ft (1,800m) 86°F (30°C) at 13,000 ft (4,000m) 27.2°C (81°F) at 15,000 ft (4,600m) Note: De-rate 34.5°F (1.4°C) per 1,000 ft above 6,000 ft (per 300m above 2,600m) |
|
Temperature |
-4 to 149°F (-20 to +65°C) |
|
Relative humidity |
5 to 95% |
|
Altitude |
15,000 ft (4,600m) |
|
Safety |
• UL 60950-1, First Edition, Standard for safety for information technology equipment (US) • CAN/CSA-C22.2 No. 60950-1-03, Safety of information technology equipment including electrical business equipment (Canada) • IEC 60950-1:2001, Safety of information technology equipment/Second Edition -2005) (World-Wide)- 2 nd Ed. 2005 (optional) • EN 60950 -1:2001, Safety of information technology equipment (CENELEC; includes EU and EFTA) • GB4943-2001, Safety of information technology equipment (PRC) • AS/NZS 60950-1, Safety of information technology equipment including electrical business equipment (Australia) • NOM-019, Safety of data processing equipment (Mexico) |
|
EMC |
Emission: • 47 CFR Part 15 Class A • CISPR22 Class A • EN300386 Class A • EN55022 Class A • EN61000-3-2 • EN61000-3-3 • SD/EMI (India) • KN22 (Korea) • VCCI Class I • AS/NZS CISPR 22 Class A Immunity: • CISPR24 • EN300386 • EN50082-1 • EN55024 • SD/EMI (India) • KN22 (Korea) • EN61000-6-1 |
