< tbody >

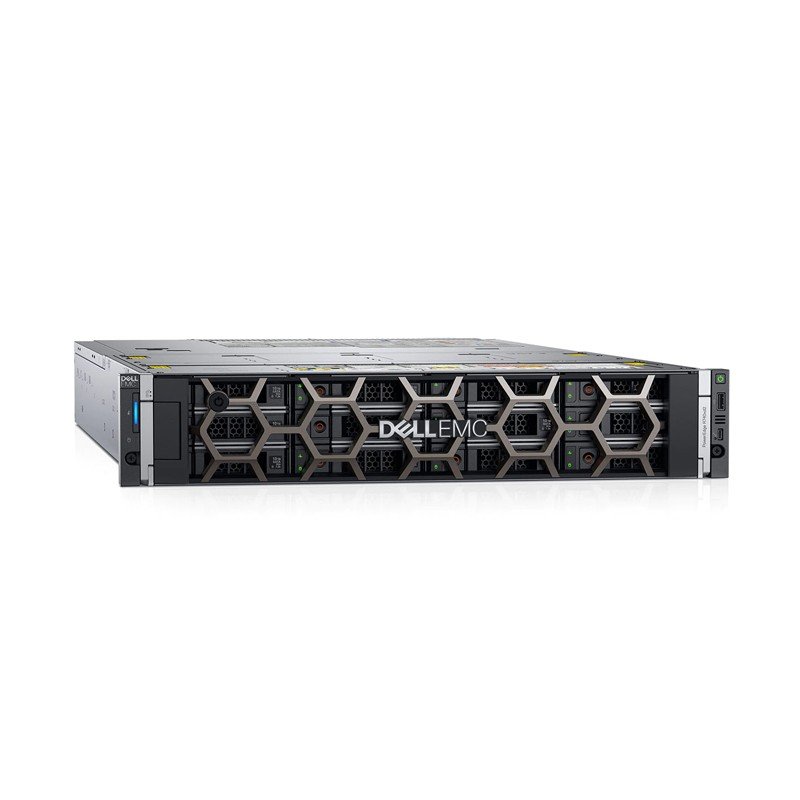

| Model: | Dell PowerEdge R740XD Server |
| Detail: | Dell PowerEdge R740XD Server, 2U Chassis, 3104 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, 495W*1 Power Supply, 3.5inch Hard Drive-12 |
$2,363.00
Dell PowerEdge R740xd Specification |
|
| Processor | Up to two Intel Xeon Processor Scalable Family processors, up to 28 cores per processor. |
| Dimensions | Form factor: Rack (2U)
Max depth: 715.5 mm |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only |
| Storage controllers | Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID) |
| Drive bays | Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5” SAS/SATA HDD max 144TB
Mid bay: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD |
| Power supplies | Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
| System battery | CR 2032 3.0-V lithium coin cell system battery |
| Embedded management | IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional |
| Bezel | Optional LCD Bezel or Security bezel |
| OpenManage™ Software | OpenManage Enterprise
OpenManage Essentials OpenManage Mobile OpenManage Power Center |
| Integrations and connections | Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software
Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management |
| Security | TPM 1.2/2.0 optional
System Lockdown Cryptographically signed firmware Secure erase Secure Boot |
| I/O & Ports | Network daughter card options 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
| Accelerator options | GPU and FPGA options are available only on 24 x 2.5” drive chassis. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100 or Intel Arria® 10 GX |
| Supported operating systems | Canonical Ubuntu LTS
Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
