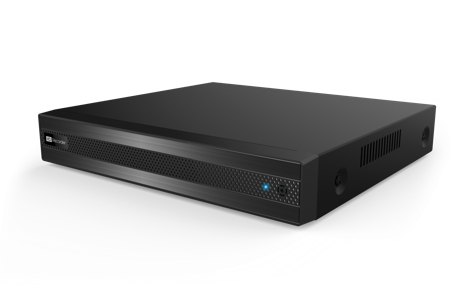

HWT-XVR620-A01 8CH

8-channel 1-disk HD video recorder
8 CH TVI / AHD/CVI 1080P/1080P Lite/720P/WD1 video input
8 CH DVR supports 2 CH 1080P / 960P /720P IP video input by default
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timed / motion
Search: time slice, time, event, tag search
Express and flexible backup via USB, network and so on
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
8CH analog video input can be switched to 8CH IP video input Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Playback : 8 CH simultaneously playback
Technical Spec
OS System Embedded Linux
Analog Video Input 8 BNC port
Input platform TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/ WD1
IP Video input 2 channels, 16Mbps
Total Input 10 channels
Playback 8 channels 60Mbps
Local decoding 8 channels Analog cameras
Local decoding 2 channels 5MP@25fps
HDMI One HDMI port, resolution: 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA One VGA port; resolutions: 1920 × 1080 / 1280 × 1024 / 1024 × 768
Preview 1/4/6/8/9/13/16 panes
Disks 1
Disk port SATA 2.0
Disk type Up to 8TB
Resolution 1080P Lite/ 720P/ 720P Lite/ WD1
Frame Rate Analog Channel:
Frame Rate 4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC)
Frame Rate 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support) 720P Lite: 25fps(PAL) / 30fps (NTSC)
Frame Rate IP Channel: 25fps(PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 4Mbps
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Video format H.264/H.265
Audio format G.711a/G.711u
Network protocols TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Device access BNC and ONVIF
Client access MAX 5 users
Management mode LDU
Functions Play, pause, FF, FB, digital zoom, etc.
Network port One RJ45 100Mbps
USB port 2 x USB 2.0 port (one on the front panel and one on the rear panel)
Audio input 1 channel, RCA port
Audio output 1 channel, RCA port (linear, 600Ω)
Operating temperature -10°C to 50°C
Operating humidity 10% to 90%
Power consumption ≤ 5 W (excluding hard disk and PoE output)
Power supply 12 V/1.5 A
Dimensions 42 mm (H) x 255 mm (W) x 222 mm (D)
Shelf 1 U
Certification CE
