Description
Huawei s5731-s48p4x s5700 Series Switch
Overview of Huawei s5731-s48p4x s5700 Series Switch
The switch offers a range of standard gigabit access with all-GE electrical/optical ports and fixed 10 GE uplink ports. Built on Huawei’s unified Versatile Routing Platform (VRP), Huawei S5731-S48P4X Switch provide enhanced Layer 3 features, simplified Operations & Maintenance (O&M), Intelligent Stack (iStack) technology. This allows multiple stacking-capable switches to function as a single logical switch. It is widely used in a range of scenarios, including enterprise campus access and aggregation, as well as data center access

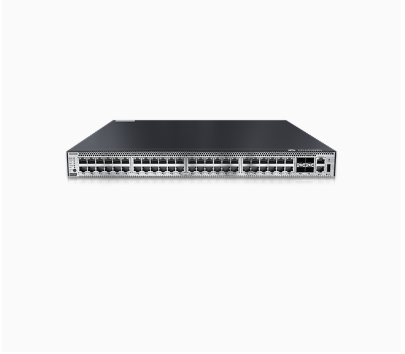

Huawei CloudEngine S5731-S48P4X switch with 48-ports 4x10GE SFP+
With 1+1 power backup, PoE+
Forwarding performance: 125 Mpps, Switching capacity: 176 Gbps/672 Gbps
The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features.
The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
Specification of Huawei s5731-s48p4x s5700 Series Switch
| Fixed Port | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | |
| Power supply type | 1000 W PoE AC (pluggable) | |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz | |
| Maximum voltage range | AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) |
|
| Maximum power consumption | 132 W (without PD) 1750 W (with PD, PD power consumption of 1440 W) | |
| Noise | Under normal temperature (sound power): 62.3dB (A)
Under high temperature (sound power): 71.8dB (A) Under normal temperature (sound pressure): 52.8dB (A) |
|
| Operating temperature | 0-1800 m altitude: -5°C to +45°C
1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
|
| Storage temperature | -40℃ to +70℃ | |
| Relative humidity | 5% to 95% (non condensing) | |
| Surge protection specification (service port) | Common mode: ±6 kV | |
| Surge protection specification (power port) | Differential mode: ±6 kV; Common mode: ±6 kV | |
| Heat dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans | |
| Dimensions (H x W xD) | 442 mm x 420 mm x 43.6 mm | |
| Chassis height | 1 U | |
| Chassis weight (including packaging) | 8.8 kg | |
Features of Huawei s5731-s48p4x s5700 Series Switch
- Support many Layer 2/Layer 3 multicast protocols such as PIM SM, PIM DM, PIM SSM, MLD, and IGMP snooping, to support multi-terminal high-definition video backhaul and video conferencing services.
- Support multiple Layer 3 features including OSPF, IS-IS, BGP, and VRRP, meeting enterprises’ requirements on access and aggregation service bearing, and enabling a variety of voice, video, and data applications.
- Support MAC address authentication, 802. 1x authentication, and Portal authentication, and implements dynamic delivery of policies (VLAN, QoS, and ACL) to users.
- Provide a series of mechanisms to defend against DoS and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and change of the DHCP CHADDR value.
For more information about this switch ,visit the Huawei Website.
