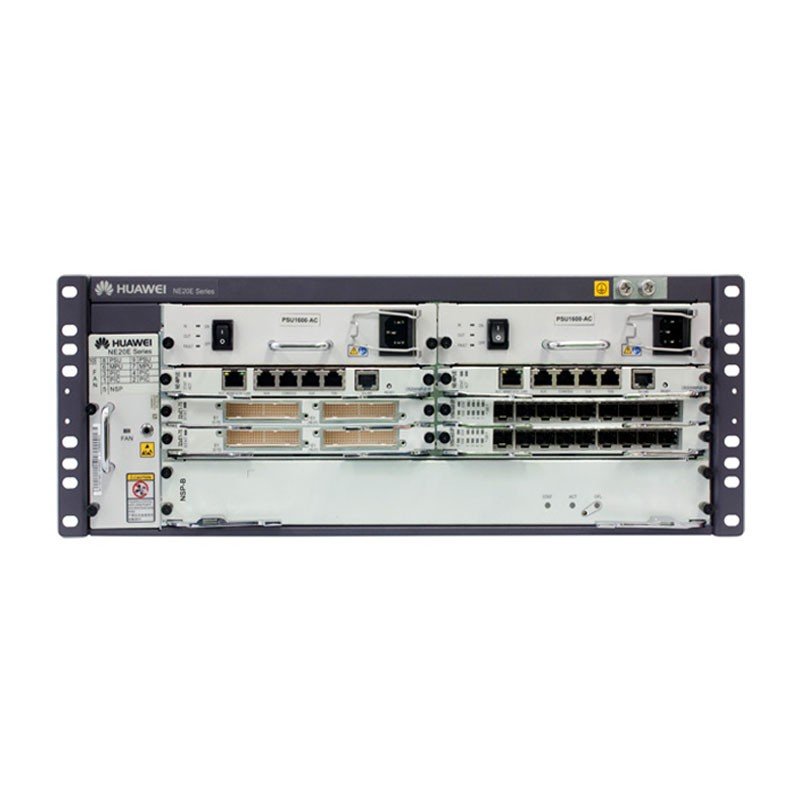

| Model: | Huawei NetEngine NE20E Series Router CR2M04BASD01 |
| Detail: | NE20E-S4 DC Basic Configuration Includes NE20E-S 4 Chassis,1*MPUE,2*DC Power,Power cord,without Software Charge and Document |
$6,016.00
CR2M04BASD01 Specification |
|
| Switching Capacity | 480 Gbit/s |
| Forwarding Performance | 180 Mpps |
| Fixed Ports | — |
| Number of Slots | 2 MPUs
1 NSP 4 PICs |
| Dimensions
(H x W x D) |
5.1 in. x 17.4 in. x 8.6 in. DC = 3U (132 mm x 442 mm x 220 mm DC = 3U) |
| Power consumption (in full configuration) | 398W (DC) |
| Weight in Full Configuration | 30.2 lb (13.7 kg) (DC) |
| Interface Types | 40 GE
10 GE GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS E1/CE1 |
| Clock Synchronization | Synchronous Ethernet and IEEE 1588v2 |
| Layer 2 Features | IEEE 802.1q
IEEE 802.1p IEEE 802.3ad IEEE 802.1ab STP/RSTP/MSTP |
| IPv4/IPv6 Routing Protocols | IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP
IPv4/IPv6 dual stack IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing |
| L2/L3 VPN | LDP over TE, VPLS, H-VPLS, and VPN policy-based routing
Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN |
| Multicast | IGMPv1/v2/v3
IGMP snooping IPv6 multicast Static multicast routing PIM-SM PIM-SSM MBGP NG MVPN |
| QoS | WRED
Five-level HQoS VLL/PWE3 QoS |
| Reliability | NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP
GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6 Fast convergence of BGP/IGP/multicast routes IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR Ethernet OAM, Y.1731, and PWE3 E2E protection ISSU and in-service patching for smooth software upgrades |
| Security | ACL-based packet filtering
AAA SNMPv3 encryption and authentication URPF, GTSM, DHCP snooping ARP attack defense SSHv2 |
| Value-added Services | NAT, IPSec, GRE, and NetStream |
| OAM | Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah |
| Operating Temperature | -40°F to 149°F (-40°C to 65°C) |
| Operating Relative Humidity | 5% to 85%, non-condensing |
| Operating Altitude | ≤ 9,842.5 ft. (3,000m) |
