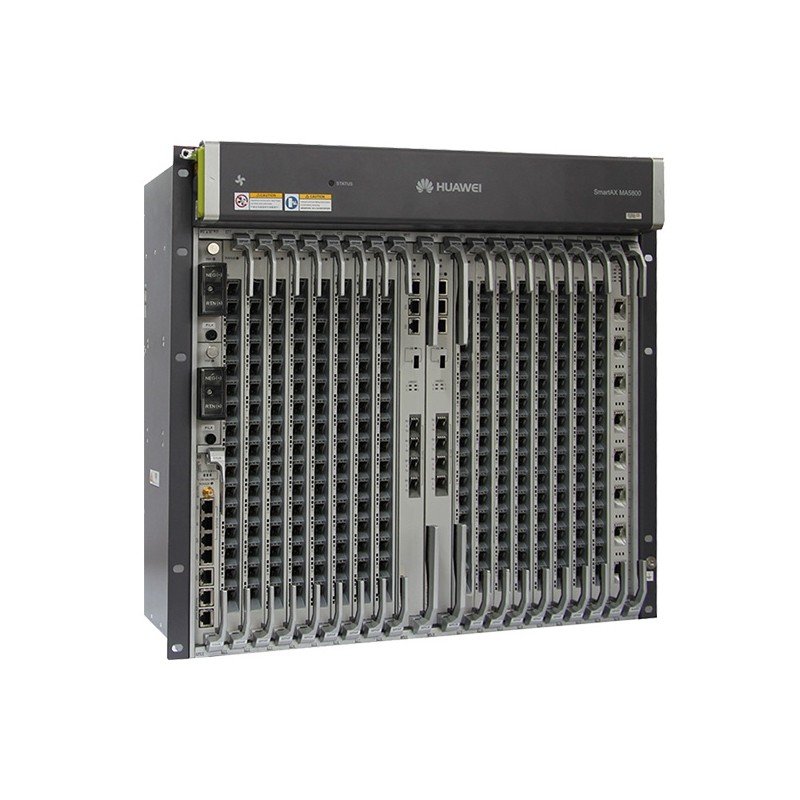

Huawei H901GPSF03 Network
Available: In stock
< tbody >
| Model: | H901GPSF03 – Huawei MA5800-X7 PON Board |
| Detail: | 16-port GPON OLT Interface Board(including Class B+ SFP Optical Module) |
Description
H901GPSF03 Specification |
|
| Part Number | 02311FGD |
| Model | H901GPSF03 |
| Product Description | 16-port GPON OLT Interface Board(including Class B+ SFP Optical Module) |
| Product Series | MA5800-X7 |
| Dimensions (H x W x D) | 442 mm x 268.7 mm x 263.9 mm |
| Maximum Number of Ports in a Subrack | 112 x GPON/EPON
336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 |
| Switching Capacity of the System | 7 Tbit/s |
| Maximum Number of MAC Addresses | 262,143 |
| Maximum Number of ARP/Routing Entries | 64K |
| Ambient Temperature | -40°C to 65°C
Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
| Working Voltage Range | -38.4V DC to -72V DC |
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 |
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
| MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching |
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast |
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
