H35M8045QSN1
Available: In stock
< tbody >

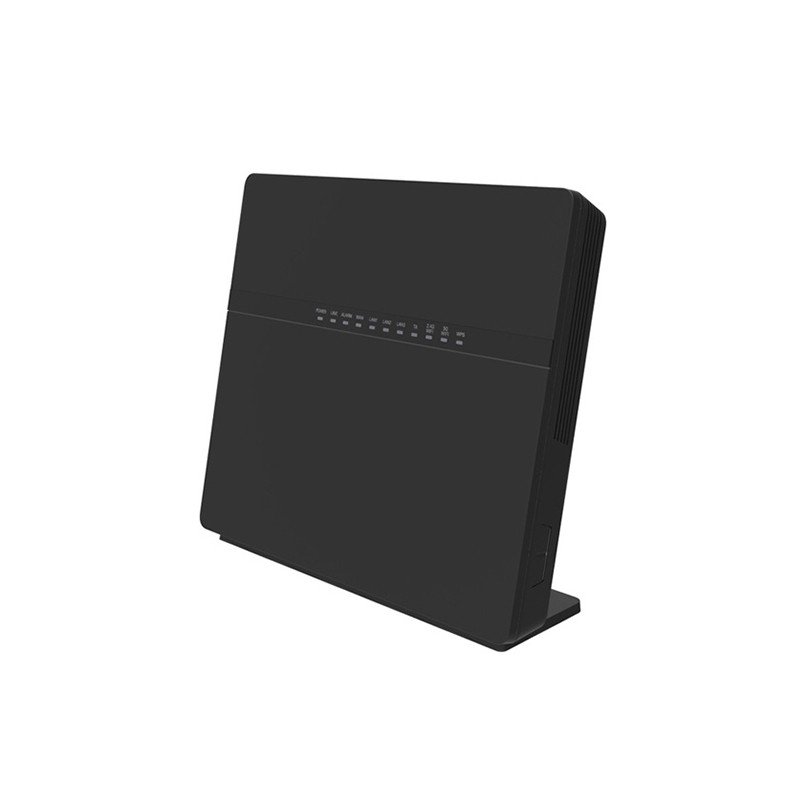

| Model: | H35M8045QSN1 – Huawei HG8045Q Terminal |
| Detail: | HG8045Q GPON Terminal,Japan Standard Adapter,Japanese Documents,SC/UPC,For Japan So-net |
Description
HG8045Q Specification |
|
| Dimensions (H x W x D) | 230 x 190 x 30 mm
(excluding the support) |
| Weight | about 500 g |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50–60 Hz |
| System power supply | 11-14 V DC, 2 A |
| Static power consumption | 5 W |
| Maximum power consumption | 21 W |
| Ports | 4GE+2.4G/5G Wi-Fi+USB |
| Indicators | POWER/PON/LOS/USB/PORT
/2.4GWi-Fi/5G Wi-Fi/WPS |
| Interface Parameters | |
| GPON Port | • Class B+
• Receiver sensitivity: -27dBm • Wavelengths: US 1310nm, DS 1490nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA |
| Ethernet Port | • Ethernet port-based VLAN tags and
tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transp arent transmission • QinQ VLAN • Limit on the number of learned MAC addresses |
| WLAN | • 802.11 b/g/n (2.4G)
• 802.11 a/n/ac (5G) • 3 x 3 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS • 2.4G/5G concurrent • Air interface rate: 450 Mbit/s (2.4G) 1300 Mbit/s (5G) |
| Ethernet Port | • USB2.0
• FTP-based network storage • File/Print sharing based on SAMBA • DLNA DMS/UPnP AV (media server) |
| Product Function | |
| Smart interconnection | • Any port any service
• L2/L3 forwarding: 1G uplink, 2G downlink |
| Smart service | • Smart Wi-Fi sharing |
| Smart O&M | • Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • WLAN emulation |
| Layer 3 Features | • PPPoE/Static IP/DHCP
• NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port |
| Multicast | • IGMP v2/v3 snooping
• MLD v1/v2 snooping • Multicast services through Wi-Fi |
| QoS | • Ethernet port rate limitation
• 802.1p priority • SP/WRR/SP+WRR |
| Security | • Anti-DoS attack
• Filtering based on MAC/IP/URL addresses |
| Common O&M | • OMCI/Web UI/TR069
• Dual-system software backup and rollback |
| Power Saving | • Dynamic power saving
• Indicator power saving • COCv4 |
