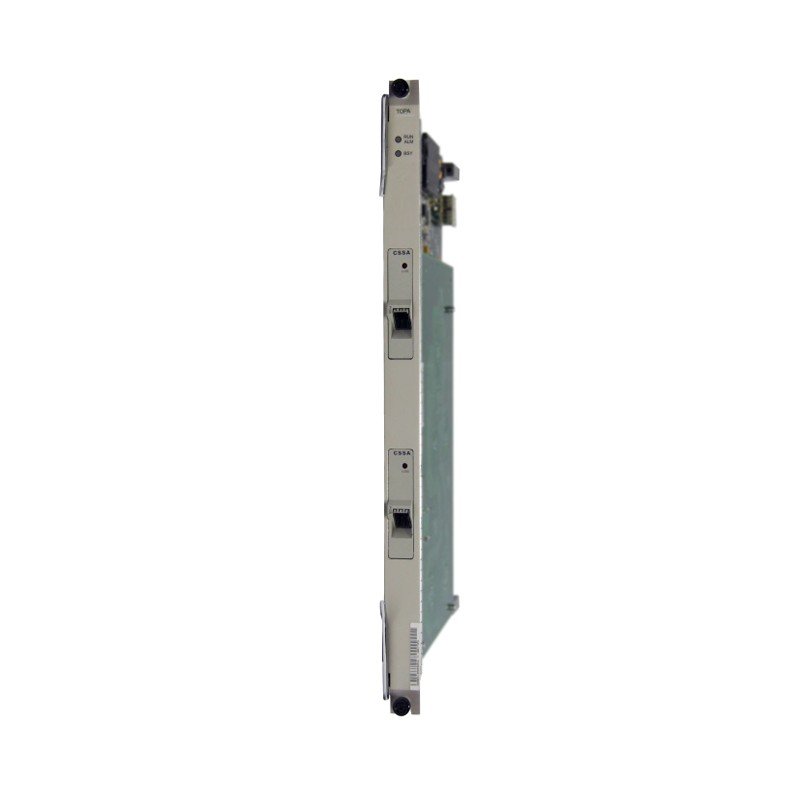

H801TOPA

0 out of 5 based on 0 customer ratings

Available: In stock

< tbody >

Model:	H801TOPA – Huawei SmartAX MA5600T General Boards
Detail:	Huawei SmartAX MA5600T TDM Traffic Over PSN Board

Description

Native TDM

Supported when the daughter board is NH1A/O2CE

CESoP

Supported when the daughter board is EH1A/CSSA

Automatic shutdown at high temperature

Not supported

Environment

Operating temperature

-40° C to +65° C

Power consumption

With the NH1A/EH1A daughter board:
• Static: 24.2 W
• Maximum: 25.3 W

With the O2CE daughter board:
• Static: 24 W
• Maximum: 24.5 W

With the CSSA daughter board:
• Static: 25 W
• Maximum: 25 W

H801TOPA Specification
Native TDM	Supported when the daughter board is NH1A/O2CE
CESoP	Supported when the daughter board is EH1A/CSSA
Automatic shutdown at high temperature	Not supported
Environment
Operating temperature	-40° C to +65° C
Power consumption	With the NH1A/EH1A daughter board: • Static: 24.2 W • Maximum: 25.3 W With the O2CE daughter board: • Static: 24 W • Maximum: 24.5 W With the CSSA daughter board: • Static: 25 W • Maximum: 25 W

Description
