H831CCMA

0 out of 5 based on 0 customer ratings

Available: In stock

< tbody >

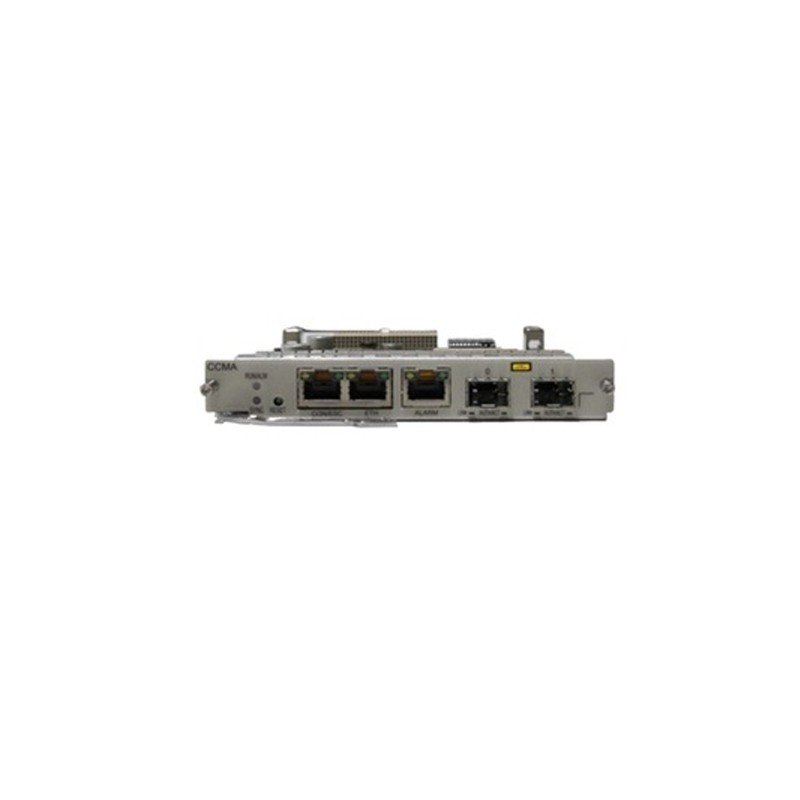

Model:	H831CCMA – Huawei SmartAX MA5818 Control Boards
Detail:	Huawei SmartAX MA5818 H831CCMA control board, a super control unit board used for copper line access.

Description

Function & Environment

System packet forwarding rate

10 Mpps

Switching capacity

20 Gbit/s

MAC address table

16 x 1024

Number of multicast users

512

Number of multicast logs

5120

Number of concurrent multicast channels

1024

ARP table

1024

ACL rules

256

Maximum frame length

2000 bytes

Operating temperature

-40°C to +65°C

Power consumption

Static Power Consumption (Unit: W)

Typical Power Consumption (Unit: W)

Maximum Power Consumption (Unit: W)

NOTE:

•Static power consumption: None of the broadband ports are activated.

•Typical power consumption: 50% of the broadband ports are activated at the same time.

•Maximum power consumption: All the broadband ports are activated at the same time.

H831CCMA Specification
Function & Environment
System packet forwarding rate	10 Mpps
Switching capacity	20 Gbit/s
MAC address table	16 x 1024
Number of multicast users	512
Number of multicast logs	5120
Number of concurrent multicast channels	1024
ARP table	1024
ACL rules	256
Maximum frame length	2000 bytes
Operating temperature	-40°C to +65°C
Power consumption
Static Power Consumption (Unit: W)	35
Typical Power Consumption (Unit: W)	35
Maximum Power Consumption (Unit: W)	35
NOTE: •Static power consumption: None of the broadband ports are activated. •Typical power consumption: 50% of the broadband ports are activated at the same time. •Maximum power consumption: All the broadband ports are activated at the same time.
