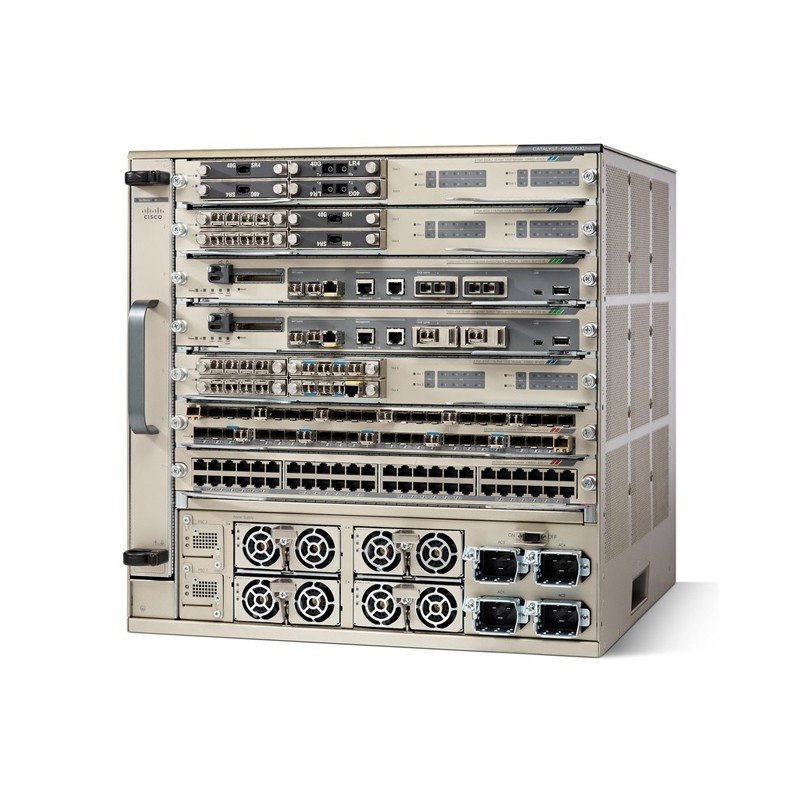

| Model: | C6807-XL-S6T-BUN – Cisco Catalyst 6800 Series Switch |
| Detail: | Catalyst 6807-XL Chassis Bundle Fan Tray, Sup6T and 2 Power Supplies, IP Services only |
Original price was: $43,700.00.$15,303.00Current price is: $15,303.00.
C6807-XL-S6T-BUN Specification |
|
| Number of Slots | 7 |
| Number of Supervisor Engine Slots | 2 |
| Number of Module Slots | 5 |
| Supervisor Compatibility | C6800-SUP6T
C6800-SUP6T-XL VS-S2T-10G VS-S2T-10G-XL |
| Module Compatibility | C6800-32P10G
C6800-32P10G-XL C6800-16P10G C6800-16P10G-XL C6800-8P10G C6800-8P10G-XL WS-X6904-40G-2T WS-X6904-40G-2TXL WS-X6908-10G-2T WS-X6908-10G-2TXL WS-X6816-10G-2T WS-X6816-10G-2TXL WS-X6816-10T-2T WS-X6816-10T-2TXL WS-X6848-SFP-2T WS-X6848-SFP-2TXL WS-X6824-SFP-2T WS-X6824-SFP-2TXL WS-X6848-TX-2T WS-X6848-TX-2TXL WS-X6704-10GE (with CFC or DFC4) WS-X6748-GE-TX (with CFC or DFC4) WS-X6748-SFP (with CFC or DFC4) WS-X6724-SFP (with CFC or DFC4) WS-X6716-10G-3C (with DFC4) WS-X6716-10G-3CXL (with DFC4XL) WS-X6716-10T-3C (with DFC4) WS-X6716-10T-3CXL (with DFC4XL) NAM3 ASA-SM WiSM2 ACE30 |
| Performance | The chassis is capable of up to 440 Gbps per slot
The performance of the individual modules is available in the module data sheets. |
| Power Supply Compatibility | AC: 3000W (up to 4 power supplies) |
|
Reliability and Availability |
|
| Online Insertion and Removal (OIR) | OIR of the following components: supervisor engines, line card modules, power supplies, and fan tray |
| MIBs | Check the supervisor engine data sheet |
| Network Management | Check the supervisor engine data sheet |
|
Physical Dimensions (H x W x D) |
|
| Inches | 17.45 x 17.37 x 18.1 |
| Centimeters | 44.3 x 44.1 x 46 |
| Rack units (RU) | 10 |
|
Weight |
|
| Chassis Only (lbs) | 62 |
| Fully Configured (lbs) | 185 |
| Input Voltage | 100 to 240 VAC
-48 to -60 VDC |
| Safety | UL 60950 Second Edition
CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition IEC 60950 Second Edition AS/NZS 60950 |
| EMC | FCC Part 15 (CFR 47) Class A
VCCI Class A EN55022 Class A CISPR 22 Class A CE marking AS/NZS 3548 Class A ETS300 386 EN55024 EN61000-6-1 EN50082-1 |
| ETSI | ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1 |
|
Operating Environment |
|
| Operating Temperature | 32°F to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 149°F (-20 to 65°C) |
| Thermal Transition | 0.5°C per minute (hot to cold)
0. 33°C per minute (cold to hot) |
| Relative Humidity | Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Operating Altitude | Certified for operation: 0 to 6500 ft (0 to 2000 m)
Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m) |
