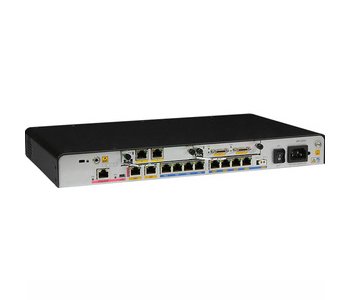

AR0MNTEH10301 Specification
|
| WAN speed with services*** |
200 Mbit/s |
| Firewall Performance (large packet) |
900 Mbit/s |
| Device Switching Capacity |
8 Gbit/s |
| Slot Switching Bandwidth |
SIC & WSIC slots: 2 Gbit/s |
| Number of Recommended Users |
100 |
| Fixed WAN Ports |
2 x GE |
| Fixed LAN Ports |
8 x FE (can be configured as WAN interfaces) |
| SIC Slots |
2 |
| WSIC Slots (default/max) |
0/1 |
| DSP Slots |
– |
| Wi-Fi |
– |
| USB 2.0 Ports |
2 |
| Mini-USB Ports |
1 |
| Serial Auxiliary/Console Port |
1 |
| Memory |
512 MB |
| Flash |
256 MB |
| Max. Power |
60W |
| PoE Power |
– |
| AC Power |
100V to 240V |
| Frequency |
50 Hz/60 Hz |
| DC power |
– |
| Dimensions (H x W x D) |
44.5 mm x 390 mm x 220 mm |
| Weight |
2.9 kg (without interface cards) |
| Ambient Temperature |
0°C to 45°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Basic Features |
DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management |
| Voice |
RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features) |
| WLAN (AP) |
AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features) |
| WLAN (AC) |
AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| 3G |
3G Interface card (WCDMA) |
| LTE |
LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
| LAN |
IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
| IPv4 Unicast Routing |
Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing |
Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast |
IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP |
| MPLS |
LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
| VPN |
IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
| QoS |
DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC) |
| Security |
ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing |
| Management and maintenance |
Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI |
