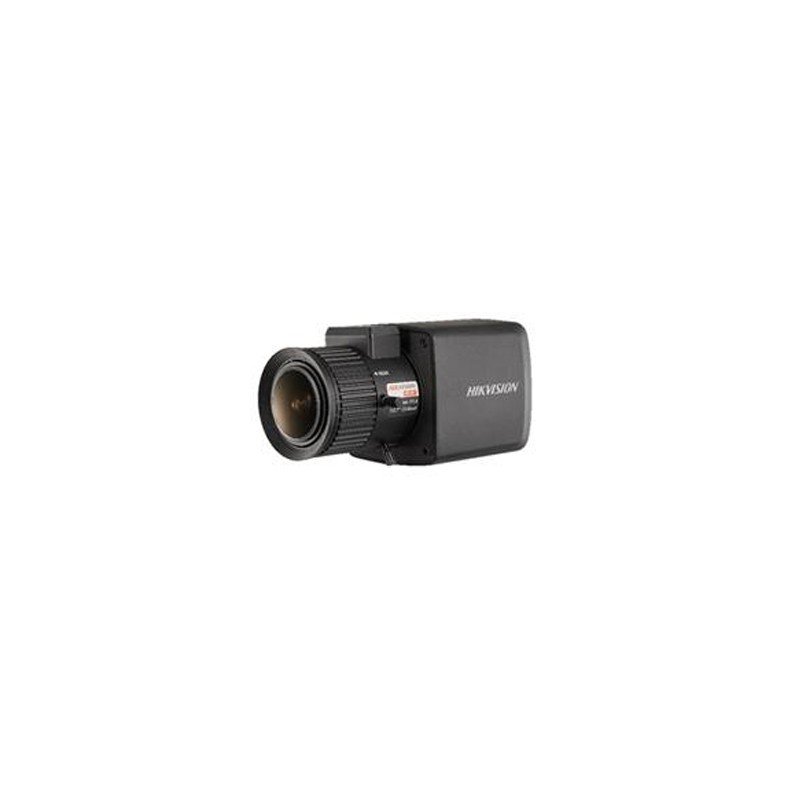

| Model: | DS-2CC12D8T-AMM – Hikvision Turbo HD Cameras |
| Detail: | D8T_TVI_1080p: TVI Only, EXIR, 120dB WDR, 3D DNR, Motion Detection, Privacy Mask, – protection, C/CS Mount Lens, CVBS Output; WDR + ICR + Auto Iris DC drive , 12VDC /24VAC power supply |
$62.00
DS-2CC12D8T-AMM Specification |
|
|
Camera |
|
|
Image Sensor |
2MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
C/CS Mount |
|
Auto Iris |
DC Drive |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120dB |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
CVBS Output |
1Vp-p Composite Output(75Ω/BNC) |
|
S/N Ratio |
More than 62 dB |
|
Up the Coax |
Support |
|
Menu |
|
|
Camera ID |
On/off (15 characters, position programmable) |
|
D/N Mode |
Auto / Color / B/W |
|
Auto White Balance |
Auto / Manual |
|
Private Mask |
ON/OFF, 4 programmable privacy masks |
|
Motion Detection |
On/Off, maximum 4 zones |
|
BLC |
On/Off |
|
AGC |
Support |
|
Anti-flicker |
On/ Off |
|
Language |
English/Chinese |
|
General |
|
|
Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC ±25%, 24 VAC ±25% |
|
Communication |
Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
Dimension |
69.29 mm × 54 mm × 56 mm (2.73″ × 2.13″ × 2.2″) |
