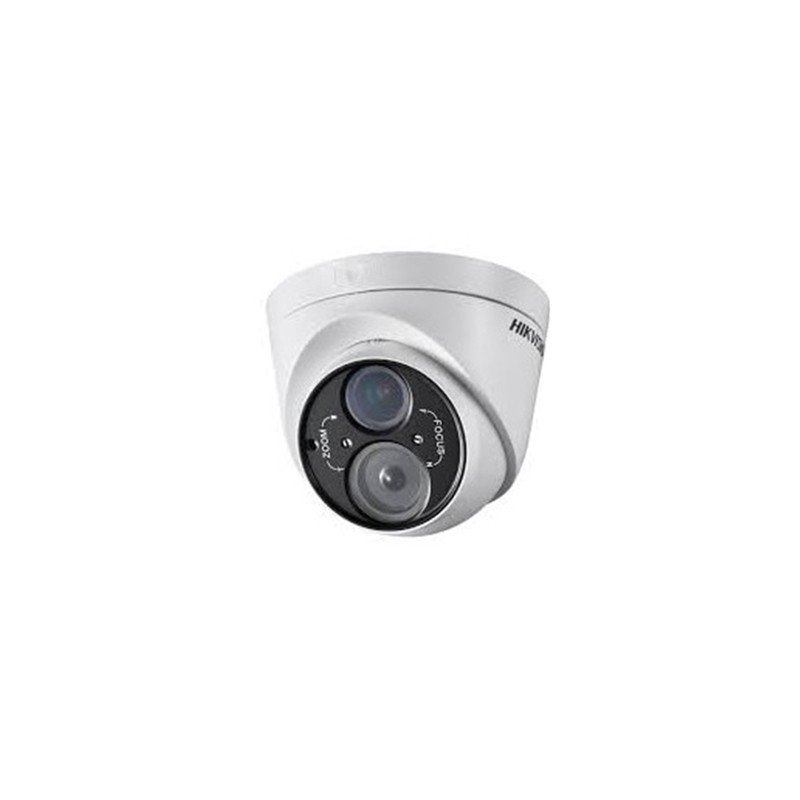

| Model: | DS-2CE56C5T-VFIT3 – Hikvision Turbo HD Cameras |
| Detail: | C5T_TVI_720p: 2-in-1 (TVI + CVBS), 1/3 CMOS, EXIR, 3D DNR, DWDR, Motion Detection, Private Mask, Auto White Balance, IP66 protection, 2.8~12mm Lens, ICR + 50m IR Distance + 1 pc EXIR LED, 12VDC power supply |
$70.00
DS-2CE56C5T-VFIT3 Specification |
|
|
Camera |
|
|
Image Sensor |
1.27MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1305(H)x977(V) |
|
Min. Illumination |
0.001 Lux @(F1.2,AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens |
2.8-12mm @ F1.4 Angle of view: 92° – 29.3° |
|
Lens Mount |
φ14 |
|
Adjustment Range |
Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
|
Day& Night |
IR cut filter with auto switch |
|
Video Frame Rate |
720p@25fps/720p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
CVBS Output |
1Vp-p Composite Output(75Ω/BNC) |
|
S/N Ratio |
More than 62 dB |
|
Up the Coax |
Support |
|
Menu |
|
|
Automatic Exposure |
Globe AE/DWDR |
|
Auto Gain |
Low/Middle/High/Off |
|
D/N Mode |
Color/ BW/ EXT |
|
Auto White Balance |
Auto / Manual |
|
Private Mask |
On/Off, maximum 8 zones |
|
Motion Detection |
On/Off, maximum 4 zones |
|
Language |
English/Chinese |
|
Function |
Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror |
|
General |
|
|
Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC±15% |
|
Power Consumption |
Max. 6.5W |
|
Weather Proof |
IP66 |
|
IR Range |
Up to 50m |
|
Communication |
Up the coax |
|
Protocol: Pelco-C (CVBS output), HIKVISION-C (TVI output) |
|
|
Dimension |
φ130.54 × 93.24 mm (φ5.14” × 3. 67”) |
