A3A IR Series with MIC

0 out of 5 based on 0 customer ratings
0 Review(s) Add your Review
Available: In stock

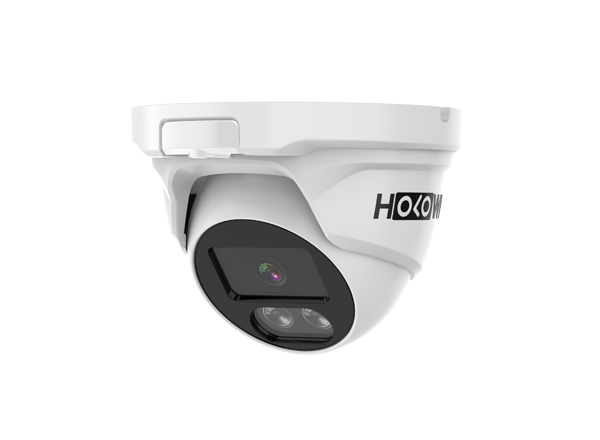

2MP | 5MP Analog Dome Camera

  • 【A3A-2RV(2.8)】: 2MP IR Dome Camera with MIC
  • 【A3A-2RV(3.6)】: 2MP IR Dome Camera with MIC
  • 【A3A-5RV(2.8)】: 5MP IR Dome Camera with MIC
  • 【A3A-5RV(3.6)】: 5MP IR Dome Camera with MIC
  • Note: Technical Spec may vary depending on the model. For precise parameters, please refer to the datasheet of the corresponding model

Category:

Description

Technical Spec

Image sensor 1/3” or 1/2.7” CMOS
Maximum Resolution 1920 (H)*1080 (V) / 2880 (H)*1620 (V)
Lens 2.8mm / 3.6mm
Effective pixels Default 2MP/5MP 25FPS（P)/30FPS(N)
Signal system PAL/NTSC（switched by OSD）
Day-night mode IR Cut Filter
S/N Ratio ≥50DB
Minimum illumination 0.02lux@F2.0
BLC AUTO
AWB AUTO
AES AUTO
OSD language (6) English/Chinese/Russian/Japanese/Korean
IR Range 20m
Video output AHD/TVI/CVI/CVBS
Video recording takes up space 1 min≈35.2MB（2.8mm/3.6mm lens）
Operating temperature -20℃ – 60℃
Power type 12 VDC 0.5A
Power consumption Day ≦3W, Night ≦6W
Operating humidity 95% or Less (Non-Condensing)
IP rating IP66
Weight 283g
Size (With Package) 110mm*110mm*89mm (L*W*H)
